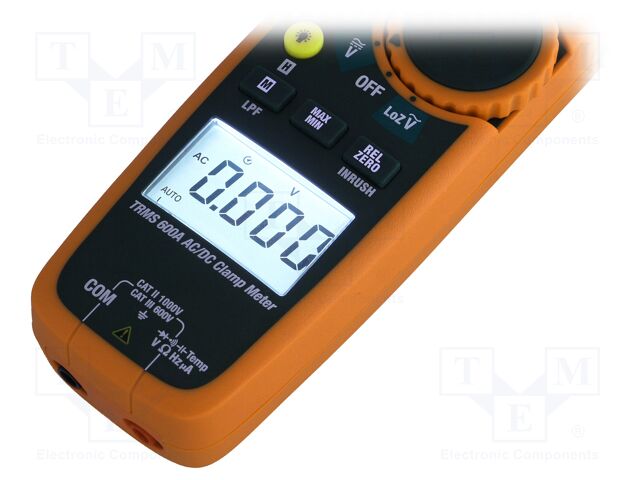

EX655 EXTECH
Hersteller: EXTECHCategory: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 30mm; LCD
Type of meter: multifunction
Kind of display used: LCD
Display parameters: (6000)
Illumination: yes
Bargraph: yes
True effective value measurement: True RMS AC
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.8% + 3 digit)
AC voltage measuring range: 6V; 60V; 600V; 750V
AC voltage measuring accuracy: ±(1.2% + 5 digit)
DC current measuring range: 600µA; 60A; 600A
DC current measuring accuracy: ±(1% + 2 digit)
AC current measuring range: 600µA; 60A; 600A
AC current measuring accuracy: ±(2.5% + 5 digit)
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Resistance measuring accuracy: ±(1%+2 digit)
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF
Capacitance measuring accuracy: ±(4%+ 5 digit)
Frequency measuring range: 10...1MHz
Frequency measuring accuracy: ±(0.1%+3 digit)
Temperature measuring range: -40...1000°C
Temperature measurement accuracy: ±(3% + 5 digit)
Diode test: 3V
Continuity test: acoustic indication; <30Ω
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; inrush current; resistance; temperature
Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010
Power supply: battery LR03 AAA 1,5V x3
Pollution degree: 2
Dimensions: 288x77x41mm
Measuring instrument features: auto and manual ranging; automatic power-off; HOLD function; low-pass filter for measuring drive parameters; non-contact voltage detector
Standard equipment: temperature probe; test leads
Weight without batteries: 265g
Max. diameter of measured cable: 30mm
Kind of meter: digital; pincers type
auf Bestellung 7 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 1+ | 170.2 EUR |
| 3+ | 166.19 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details EX655 EXTECH
Category: Meters and AC/DC Clamp Probes, Description: Meter: multifunction; digital,pincers type; Øcable: 30mm; LCD, Type of meter: multifunction, Kind of display used: LCD, Display parameters: (6000), Illumination: yes, Bargraph: yes, True effective value measurement: True RMS AC, DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV, DC voltage measuring accuracy: ±(0.8% + 3 digit), AC voltage measuring range: 6V; 60V; 600V; 750V, AC voltage measuring accuracy: ±(1.2% + 5 digit), DC current measuring range: 600µA; 60A; 600A, DC current measuring accuracy: ±(1% + 2 digit), AC current measuring range: 600µA; 60A; 600A, AC current measuring accuracy: ±(2.5% + 5 digit), Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ, Resistance measuring accuracy: ±(1%+2 digit), Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF, Capacitance measuring accuracy: ±(4%+ 5 digit), Frequency measuring range: 10...1MHz, Frequency measuring accuracy: ±(0.1%+3 digit), Temperature measuring range: -40...1000°C, Temperature measurement accuracy: ±(3% + 5 digit), Diode test: 3V, Continuity test: acoustic indication; .
Weitere Produktangebote EX655 nach Preis ab 166.19 EUR bis 318.36 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
+8 |
EX655 | Hersteller : EXTECH |
Category: Meters and AC/DC Clamp Probes Description: Meter: multifunction; digital,pincers type; Øcable: 30mm; LCD Type of meter: multifunction Kind of display used: LCD Display parameters: (6000) Illumination: yes Bargraph: yes True effective value measurement: True RMS AC DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV DC voltage measuring accuracy: ±(0.8% + 3 digit) AC voltage measuring range: 6V; 60V; 600V; 750V AC voltage measuring accuracy: ±(1.2% + 5 digit) DC current measuring range: 600µA; 60A; 600A DC current measuring accuracy: ±(1% + 2 digit) AC current measuring range: 600µA; 60A; 600A AC current measuring accuracy: ±(2.5% + 5 digit) Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ Resistance measuring accuracy: ±(1%+2 digit) Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF Capacitance measuring accuracy: ±(4%+ 5 digit) Frequency measuring range: 10...1MHz Frequency measuring accuracy: ±(0.1%+3 digit) Temperature measuring range: -40...1000°C Temperature measurement accuracy: ±(3% + 5 digit) Diode test: 3V Continuity test: acoustic indication; <30Ω Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; inrush current; resistance; temperature Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010 Power supply: battery LR03 AAA 1,5V x3 Pollution degree: 2 Dimensions: 288x77x41mm Measuring instrument features: auto and manual ranging; automatic power-off; HOLD function; low-pass filter for measuring drive parameters; non-contact voltage detector Standard equipment: temperature probe; test leads Weight without batteries: 265g Max. diameter of measured cable: 30mm Kind of meter: digital; pincers type Anzahl je Verpackung: 1 Stücke |
auf Bestellung 7 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||
 |
EX655 | Hersteller : Extech | Digital Multimeters Clamp Meter TRMS 600A AC/DC W/NCV |
auf Bestellung 3 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||
 |
EX655 | Hersteller : EXTECH INSTRUMENTS |
Description: EXTECH INSTRUMENTS - EX655 - Strommesszange, Echteffektivwert, 600A AC, 750V DC, 30mm maximale Backenöffnung tariffCode: 90303100 Messwert Gleichspannung, max.: 1kV Messwert Wechselspannung, max.: 750V Messwert Widerstand, max.: 60Mohm rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: YES usEccn: 3A992.a Backenöffnung, max.: 1.18" euEccn: NLR DMM-Messverfahren: Echteffektivwert Anzahl der Stellen: 3.75 DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Diode, Frequenz, Widerstand, Temperatur Produktpalette: EX65x Series productTraceability: No Messwert Wechselstrom, max.: 600A Bereichswahl: Manuell SVHC: No SVHC (20-Jun-2016) |
auf Bestellung 3 Stücke: Lieferzeit 14-21 Tag (e) |
|||||||
| EX655 | Hersteller : GMS Instruments | EX655 |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||
 |
EX655 | Hersteller : Teledyne FLIR |
Digital Clamp-ON 750VAC 1000VDC |
Produkt ist nicht verfügbar |
|||||||
| EX655 | Hersteller : FLIR Extech |
Description: CLAMP METER TRUE RMS 600A AC/DC Packaging: Box Type: Current Meter, Clamp/Probe Specifications: DMM Functions Include Voltage, Resistance, Capacitance, Temperature, Frequency and Current to 600A Ratings: CAT II 1000V, CAT III 600V |
Produkt ist nicht verfügbar |
