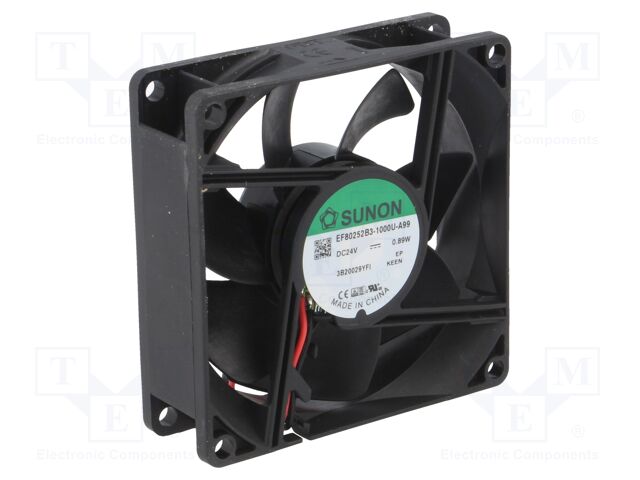

EF80252B3-1000U-A99 SUNON
Hersteller: SUNON
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x25mm; 56.06m3/h; 28dBA; ball; 2600rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 8...27.6V
Fan dimensions: 80x80x25mm
Power consumption: 0.89W
Current rating: 36mA
Fan efficiency: 56.06m3/h
Noise level: 28dBA
Kind of Bearing: ball
Rotational rate/speed: 2600rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.315m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Anzahl je Verpackung: 1 Stücke
Category: DC24V Fans
Description: Fan: DC; axial; 24VDC; 80x80x25mm; 56.06m3/h; 28dBA; ball; 2600rpm
Type of fan: DC
Kind of fan: axial
Supply voltage: 24V DC
Operating voltage: 8...27.6V
Fan dimensions: 80x80x25mm
Power consumption: 0.89W
Current rating: 36mA
Fan efficiency: 56.06m3/h
Noise level: 28dBA
Kind of Bearing: ball
Rotational rate/speed: 2600rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.315m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Anzahl je Verpackung: 1 Stücke
auf Bestellung 293 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
9+ | 8.01 EUR |
10+ | 7.21 EUR |
50+ | 6.92 EUR |
