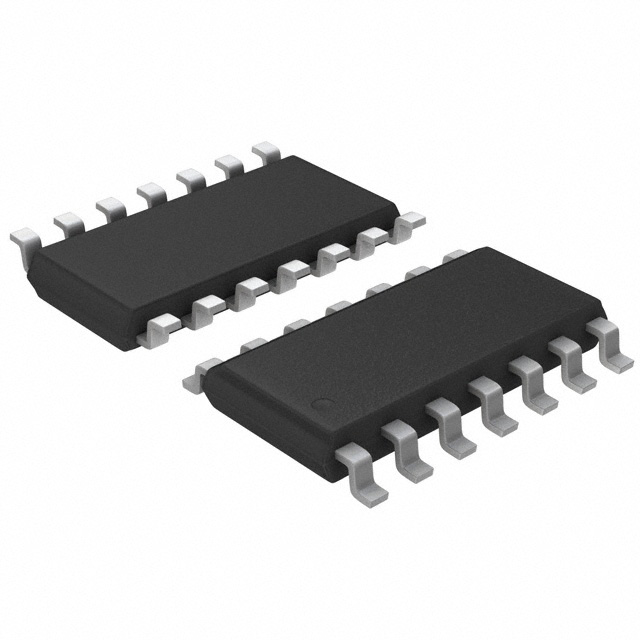

![CD4001UBNSRG4 CD4001UBNSRG4](https://mm.digikey.com/Volume0/opasdata/d220001/medias/images/321/296;4040062;NS;14.jpg)
CD4001UBNSRG4 Texas Instruments
![CD4001B,02B,25B.pdf](/images/adobe-acrobat.png)
Description: IC GATE NOR 4CH 2-INP 14SO
Packaging: Tape & Reel (TR)
Package / Case: 14-SOIC (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Logic Type: NOR Gate
Operating Temperature: -55°C ~ 125°C
Voltage - Supply: 3V ~ 18V
Current - Output High, Low: 3.4mA, 3.4mA
Number of Inputs: 2
Supplier Device Package: 14-SO
Input Logic Level - High: 4V ~ 12.5V
Input Logic Level - Low: 1V ~ 2.5V
Max Propagation Delay @ V, Max CL: 50ns @ 15V, 50pF
Part Status: Obsolete
Number of Circuits: 4
Current - Quiescent (Max): 1 µA
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details CD4001UBNSRG4 Texas Instruments
Description: IC GATE NOR 4CH 2-INP 14SO, Packaging: Tape & Reel (TR), Package / Case: 14-SOIC (0.209", 5.30mm Width), Mounting Type: Surface Mount, Logic Type: NOR Gate, Operating Temperature: -55°C ~ 125°C, Voltage - Supply: 3V ~ 18V, Current - Output High, Low: 3.4mA, 3.4mA, Number of Inputs: 2, Supplier Device Package: 14-SO, Input Logic Level - High: 4V ~ 12.5V, Input Logic Level - Low: 1V ~ 2.5V, Max Propagation Delay @ V, Max CL: 50ns @ 15V, 50pF, Part Status: Obsolete, Number of Circuits: 4, Current - Quiescent (Max): 1 µA.
