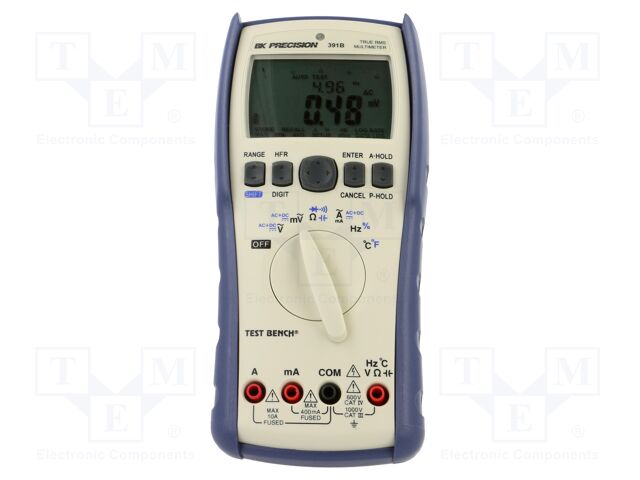

BK391B B&K PRECISION
Hersteller: B&K PRECISION
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; (40000); 3x/s; Temp: -200÷1200°C
Type of meter: digital multimeter
Interface: USB
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: (40000)
Bargraph: yes
Sampling: 3x/s
DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
DC voltage measuring accuracy: ±(0.03% + 20 digit)
AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
AC voltage measuring accuracy: ±(0.7% + 50 digit)
DC current measuring range: 40mA; 400mA; 4A; 10A
DC current measuring accuracy: ±(0.2% + 40 digit)
AC current measuring range: 40mA; 400mA; 4A; 10A
AC current measuring accuracy: ±(0.8% + 80 digit)
True effective value measurement: True RMS AC; True RMS AC+DC
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF
Capacitance measuring accuracy: ±(0.8%+ 20 digit)
Frequency measuring range: 40Hz; 400Hz; 4kHz; 40kHz; 100kHz
Temperature measuring range: -200...1200°C
Resistance measuring accuracy: ±(0.2%+30 digit)
Diode test: 2V
Continuity test: acoustic indication; <400Ω
Operating temperature: -10...50°C
Power supply: battery AA 1,5V x4
Standard equipment: adapter; case; K-type thermocouple; magnetic catch; test leads ( 2pcs.); USB cable
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 95x207x52mm
Measuring instrument features: AUTO HOLD; automatic power-off; low battery indicator; MIN/MAX/AVG/REL function; PEAK HOLD function
Battery/ rechargeable battery: battery AA 1,5V x4
Illumination: yes
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; (40000); 3x/s; Temp: -200÷1200°C
Type of meter: digital multimeter
Interface: USB
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: (40000)
Bargraph: yes
Sampling: 3x/s
DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
DC voltage measuring accuracy: ±(0.03% + 20 digit)
AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV
AC voltage measuring accuracy: ±(0.7% + 50 digit)
DC current measuring range: 40mA; 400mA; 4A; 10A
DC current measuring accuracy: ±(0.2% + 40 digit)
AC current measuring range: 40mA; 400mA; 4A; 10A
AC current measuring accuracy: ±(0.8% + 80 digit)
True effective value measurement: True RMS AC; True RMS AC+DC
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF
Capacitance measuring accuracy: ±(0.8%+ 20 digit)
Frequency measuring range: 40Hz; 400Hz; 4kHz; 40kHz; 100kHz
Temperature measuring range: -200...1200°C
Resistance measuring accuracy: ±(0.2%+30 digit)
Diode test: 2V
Continuity test: acoustic indication; <400Ω
Operating temperature: -10...50°C
Power supply: battery AA 1,5V x4
Standard equipment: adapter; case; K-type thermocouple; magnetic catch; test leads ( 2pcs.); USB cable
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 95x207x52mm
Measuring instrument features: AUTO HOLD; automatic power-off; low battery indicator; MIN/MAX/AVG/REL function; PEAK HOLD function
Battery/ rechargeable battery: battery AA 1,5V x4
Illumination: yes
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
1+ | 535.25 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details BK391B B&K PRECISION
Category: Portable digital multimeters, Description: Digital multimeter; USB; LCD; (40000); 3x/s; Temp: -200÷1200°C, Type of meter: digital multimeter, Interface: USB, Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature, Kind of display used: LCD, Display parameters: (40000), Bargraph: yes, Sampling: 3x/s, DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV, DC voltage measuring accuracy: ±(0.03% + 20 digit), AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV, AC voltage measuring accuracy: ±(0.7% + 50 digit), DC current measuring range: 40mA; 400mA; 4A; 10A, DC current measuring accuracy: ±(0.2% + 40 digit), AC current measuring range: 40mA; 400mA; 4A; 10A, AC current measuring accuracy: ±(0.8% + 80 digit), True effective value measurement: True RMS AC; True RMS AC+DC, Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ, Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF, Capacitance measuring accuracy: ±(0.8%+ 20 digit), Frequency measuring range: 40Hz; 400Hz; 4kHz; 40kHz; 100kHz, Temperature measuring range: -200...1200°C, Resistance measuring accuracy: ±(0.2%+30 digit), Diode test: 2V, Continuity test: acoustic indication; .
Weitere Produktangebote BK391B nach Preis ab 524.75 EUR bis 535.25 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
+3 |
BK391B | Hersteller : B&K PRECISION |
Category: Portable digital multimeters Description: Digital multimeter; USB; LCD; (40000); 3x/s; Temp: -200÷1200°C Type of meter: digital multimeter Interface: USB Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature Kind of display used: LCD Display parameters: (40000) Bargraph: yes Sampling: 3x/s DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV DC voltage measuring accuracy: ±(0.03% + 20 digit) AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 1kV AC voltage measuring accuracy: ±(0.7% + 50 digit) DC current measuring range: 40mA; 400mA; 4A; 10A DC current measuring accuracy: ±(0.2% + 40 digit) AC current measuring range: 40mA; 400mA; 4A; 10A AC current measuring accuracy: ±(0.8% + 80 digit) True effective value measurement: True RMS AC; True RMS AC+DC Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ Capacitance measuring range: 4nF; 40nF; 400nF; 4µF; 40µF; 400µF; 4mF; 40mF Capacitance measuring accuracy: ±(0.8%+ 20 digit) Frequency measuring range: 40Hz; 400Hz; 4kHz; 40kHz; 100kHz Temperature measuring range: -200...1200°C Resistance measuring accuracy: ±(0.2%+30 digit) Diode test: 2V Continuity test: acoustic indication; <400Ω Operating temperature: -10...50°C Power supply: battery AA 1,5V x4 Standard equipment: adapter; case; K-type thermocouple; magnetic catch; test leads ( 2pcs.); USB cable Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010 Dimensions (W x H x D): 95x207x52mm Measuring instrument features: AUTO HOLD; automatic power-off; low battery indicator; MIN/MAX/AVG/REL function; PEAK HOLD function Battery/ rechargeable battery: battery AA 1,5V x4 Illumination: yes Anzahl je Verpackung: 1 Stücke |
auf Bestellung 2 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||
BK391B | Hersteller : B&K PRECISION |
Description: B&K PRECISION - BK391B - DMM, TRAGBAR, 10A, 1KV, 40000 ZÄHLWERTE tariffCode: 90303100 Messwert Gleichspannung, max.: 1kV Messwert Wechselspannung, max.: 1kV Messwert Widerstand, max.: 40Mohm Messwert Gleichstrom, max.: 10A rohsCompliant: YES hazardous: false rohsPhthalatesCompliant: TBA usEccn: 3A992.a Schritte: 40000 Herstellergewährleistung: 3 Jahre euEccn: NLR Anzahl der Stellen: 4.75 DMM-Messverfahren: Echteffektivwert DMM-Funktionen: AC/DC-Strom, AC/DC-Spannung, Kapazität, Durchgang, Diode, Frequenz, Widerstand, Temperatur Produktpalette: - productTraceability: No Messwert Wechselstrom, max.: 10A Bereichswahl: Automatisch, manuell SVHC: No SVHC (14-Jun-2023) |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
