22051 HELUKABEL
Hersteller: HELUKABEL
Category: Multicore Cables - Unshielded

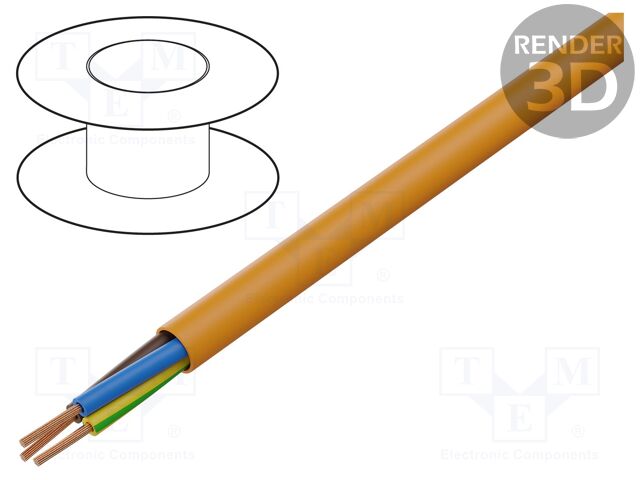

Description: Wire; H05BQ-F; 3G0.75mm2; unshielded; 300V,500V; Cu; stranded
Type of wire: mains
Kind of wire: H05BQ-F
Core section: 0.75mm2
Core structure: stranded
Kind of core: Cu
Number of cores: 3
Wire insulation material: PUR
Insulation colour: orange
Rated voltage: 300V; 500V
Operating temperature: -50...90°C
Cable external diameter: 6.2...8.1mm
CPR standard: no classification
Cable application: elements of agricultural machinery; industrial tools
Cable structure: 3G0.75mm2
Shield structure: unshielded
Core marking: colours without colour repetition + ground wire
Earth core: yellow-green
Flexibility class: 5
Resistance to: gasoline; mechanical stesses; most of oils; to weather conditions; UV rays; water
Anzahl je Verpackung: 1 Stücke
Category: Multicore Cables - Unshielded
Description: Wire; H05BQ-F; 3G0.75mm2; unshielded; 300V,500V; Cu; stranded
Type of wire: mains
Kind of wire: H05BQ-F
Core section: 0.75mm2
Core structure: stranded
Kind of core: Cu
Number of cores: 3
Wire insulation material: PUR
Insulation colour: orange
Rated voltage: 300V; 500V
Operating temperature: -50...90°C
Cable external diameter: 6.2...8.1mm
CPR standard: no classification
Cable application: elements of agricultural machinery; industrial tools
Cable structure: 3G0.75mm2
Shield structure: unshielded
Core marking: colours without colour repetition + ground wire
Earth core: yellow-green
Flexibility class: 5
Resistance to: gasoline; mechanical stesses; most of oils; to weather conditions; UV rays; water
Anzahl je Verpackung: 1 Stücke
auf Bestellung 106 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
16+ | 4.6 EUR |
27+ | 2.66 EUR |
29+ | 2.5 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 22051 HELUKABEL
Category: Multicore Cables - Unshielded, Description: Wire; H05BQ-F; 3G0.75mm2; unshielded; 300V,500V; Cu; stranded, Type of wire: mains, Kind of wire: H05BQ-F, Core section: 0.75mm2, Core structure: stranded, Kind of core: Cu, Number of cores: 3, Wire insulation material: PUR, Insulation colour: orange, Rated voltage: 300V; 500V, Operating temperature: -50...90°C, Cable external diameter: 6.2...8.1mm, CPR standard: no classification, Cable application: elements of agricultural machinery; industrial tools, Cable structure: 3G0.75mm2, Shield structure: unshielded, Core marking: colours without colour repetition + ground wire, Earth core: yellow-green, Flexibility class: 5, Resistance to: gasoline; mechanical stesses; most of oils; to weather conditions; UV rays; water, Anzahl je Verpackung: 1 Stücke.
