10027801 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers

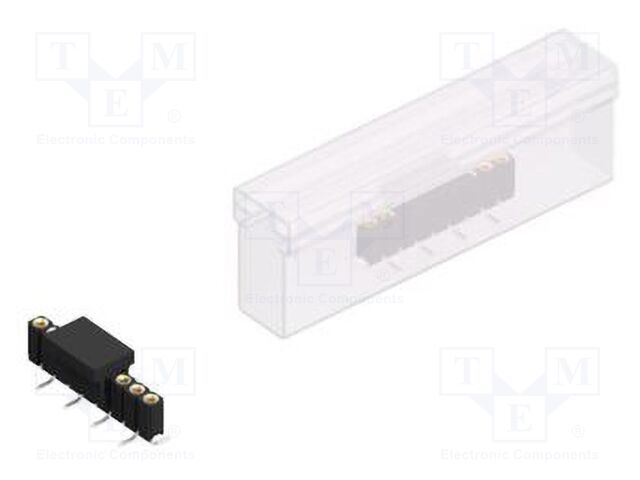

Description: Socket; pin strips; female; PIN: 9; straight; 2mm; SMT; 1x9; 100V
Current rating: 2.5A
Rated voltage: 100V
Contact material: beryllium copper
Contact plating: gold-plated
Operating temperature: -40...163°C
Flammability rating: UL94V-0
Electrical mounting: SMT
Plating thickness: 0.254µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Number of pins: 9
Connector pinout layout: 1x9
Contacts pitch: 2mm
Category: Pin headers
Description: Socket; pin strips; female; PIN: 9; straight; 2mm; SMT; 1x9; 100V
Current rating: 2.5A
Rated voltage: 100V
Contact material: beryllium copper
Contact plating: gold-plated
Operating temperature: -40...163°C
Flammability rating: UL94V-0
Electrical mounting: SMT
Plating thickness: 0.254µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Number of pins: 9
Connector pinout layout: 1x9
Contacts pitch: 2mm
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 10027801 FISCHER ELEKTRONIK
Category: Pin headers, Description: Socket; pin strips; female; PIN: 9; straight; 2mm; SMT; 1x9; 100V, Current rating: 2.5A, Rated voltage: 100V, Contact material: beryllium copper, Contact plating: gold-plated, Operating temperature: -40...163°C, Flammability rating: UL94V-0, Electrical mounting: SMT, Plating thickness: 0.254µm, Spatial orientation: straight, Type of connector: pin strips, Connector: socket, Kind of connector: female, Number of pins: 9, Connector pinout layout: 1x9, Contacts pitch: 2mm.
