10026190 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers

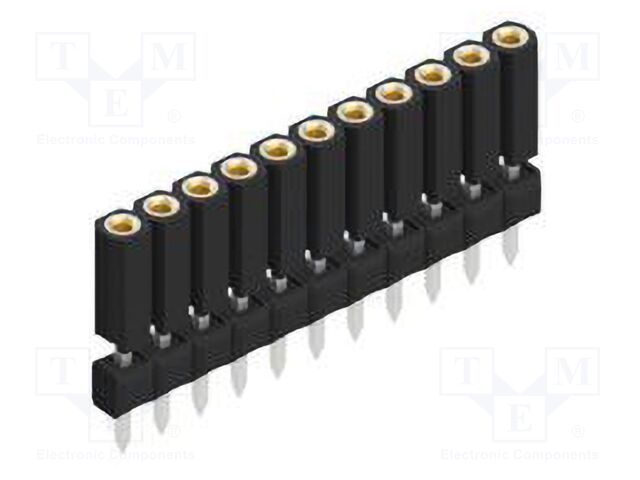

Description: Connector: pin strips; socket; female; PIN: 11; straight; 2.54mm
Type of connector: pin strips
Connector: socket
Kind of connector: female
Current rating: 3A
Electrical mounting: THT
Operating temperature: -40...163°C
Flammability rating: UL94V-0
Spatial orientation: straight
Rated voltage: 150V
Contact plating: gold-plated
Contact material: beryllium copper
Number of pins: 11
Connector pinout layout: 1x11
Plating thickness: 0.75µm
Contacts pitch: 2.54mm
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 11; straight; 2.54mm
Type of connector: pin strips
Connector: socket
Kind of connector: female
Current rating: 3A
Electrical mounting: THT
Operating temperature: -40...163°C
Flammability rating: UL94V-0
Spatial orientation: straight
Rated voltage: 150V
Contact plating: gold-plated
Contact material: beryllium copper
Number of pins: 11
Connector pinout layout: 1x11
Plating thickness: 0.75µm
Contacts pitch: 2.54mm
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 10026190 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 11; straight; 2.54mm, Type of connector: pin strips, Connector: socket, Kind of connector: female, Current rating: 3A, Electrical mounting: THT, Operating temperature: -40...163°C, Flammability rating: UL94V-0, Spatial orientation: straight, Rated voltage: 150V, Contact plating: gold-plated, Contact material: beryllium copper, Number of pins: 11, Connector pinout layout: 1x11, Plating thickness: 0.75µm, Contacts pitch: 2.54mm.
