10025494 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers

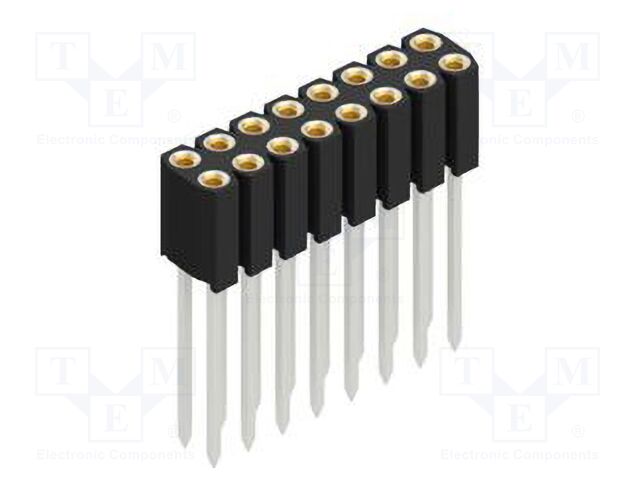

Description: Socket; pin strips; female; PIN: 16; straight; 2.54mm; THT; 2x8; 150V
Type of connector: pin strips
Spatial orientation: straight
Contacts pitch: 2.54mm
Electrical mounting: THT
Connector: socket
Contact plating: gold-plated
Current rating: 3A
Rated voltage: 150V
Contact material: beryllium copper
Operating temperature: -40...163°C
Flammability rating: UL94V-0
Connector pinout layout: 2x8
Kind of connector: female
Number of pins: 16
Plating thickness: 0.75µm
Row pitch: 2.54mm
Category: Pin headers
Description: Socket; pin strips; female; PIN: 16; straight; 2.54mm; THT; 2x8; 150V
Type of connector: pin strips
Spatial orientation: straight
Contacts pitch: 2.54mm
Electrical mounting: THT
Connector: socket
Contact plating: gold-plated
Current rating: 3A
Rated voltage: 150V
Contact material: beryllium copper
Operating temperature: -40...163°C
Flammability rating: UL94V-0
Connector pinout layout: 2x8
Kind of connector: female
Number of pins: 16
Plating thickness: 0.75µm
Row pitch: 2.54mm
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 10025494 FISCHER ELEKTRONIK
Category: Pin headers, Description: Socket; pin strips; female; PIN: 16; straight; 2.54mm; THT; 2x8; 150V, Type of connector: pin strips, Spatial orientation: straight, Contacts pitch: 2.54mm, Electrical mounting: THT, Connector: socket, Contact plating: gold-plated, Current rating: 3A, Rated voltage: 150V, Contact material: beryllium copper, Operating temperature: -40...163°C, Flammability rating: UL94V-0, Connector pinout layout: 2x8, Kind of connector: female, Number of pins: 16, Plating thickness: 0.75µm, Row pitch: 2.54mm.
