Produkte > EDAC INC. > Alle Produkte des Herstellers EDAC INC. (87527) > Seite 1127 nach 1459

Wählen Sie Seite:   [  << Vorherige Seite ]  1 145 290 435 580 725 870 1015 1122 1123 1124 1125 1126 1127 1128 1129 1130 1131 1132 1160 1305 1450 1459  [ Nächste Seite >> ]
Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
ohne MwSt
387-018-558-678 EDAC Inc. EDAC%20337%20387%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 18POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
396-018-558-612 396-018-558-612 EDAC Inc. 396-018-558-612%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: 396 SERIES (.125" (3.18MM) CONTA
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder, Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
346-018-558-678 346-018-558-678 EDAC Inc. EDAC%20346%20396%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 18POS 0.125
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Solder, Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
395-018-558-608 395-018-558-608 EDAC Inc. 395-018-558-608%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: CONN EDGE SINGLE FML 18POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
395-018-558-603 395-018-558-603 EDAC Inc. 395-018-558-603%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: CONN EDGE SINGLE FML 18POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
395-018-558-607 395-018-558-607 EDAC Inc. 395-018-558-607%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: CONN EDGE SINGLE FML 18POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
396-018-558-658 396-018-558-658 EDAC Inc. 396-018-558-658%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: CONN EDGE SGL FMALE 18POS 0.125
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Solder, Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
345-018-558-603 345-018-558-603 EDAC Inc. EDAC%20345%20395%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 18POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
746-014-525-506 746-014-525-506 EDAC Inc. EDAC%20746%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 14POS 0.125
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 14
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 14
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-104 357-020-505-104 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-104 307-020-505-104 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-102 307-020-505-102 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar

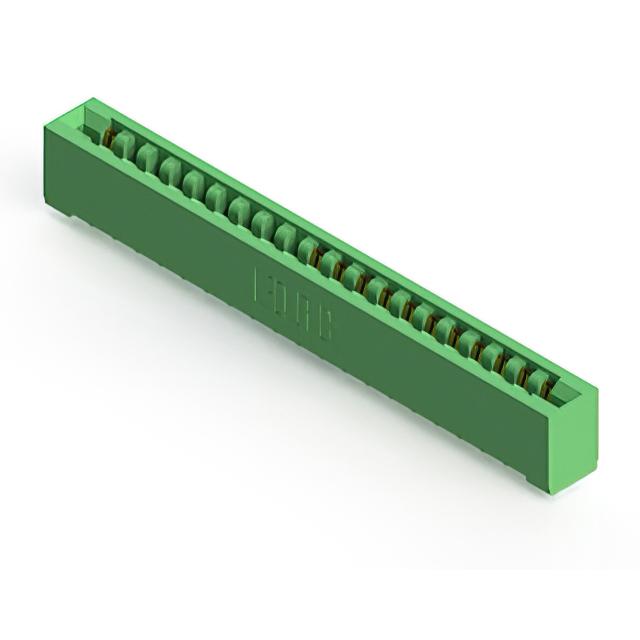

307-020-505-101 307-020-505-101 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-102 357-020-505-102 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-101 357-020-505-101 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-112 357-020-505-112 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar

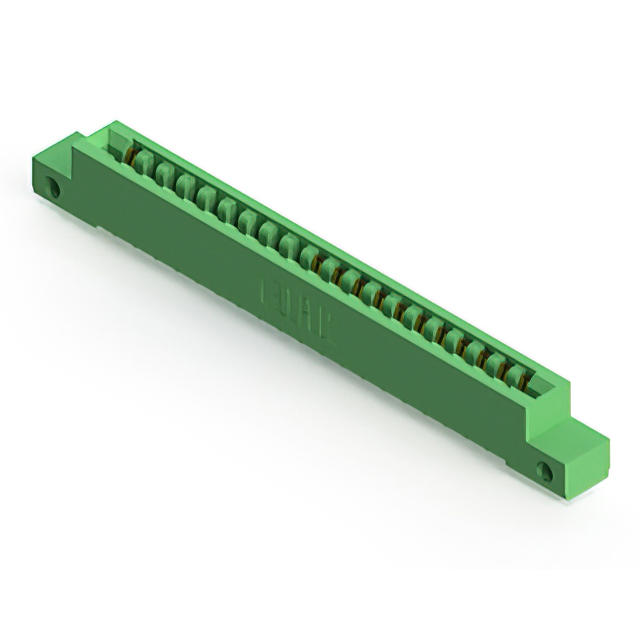

307-020-505-112 307-020-505-112 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-108 357-020-505-108 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-103 357-020-505-103 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-107 357-020-505-107 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar

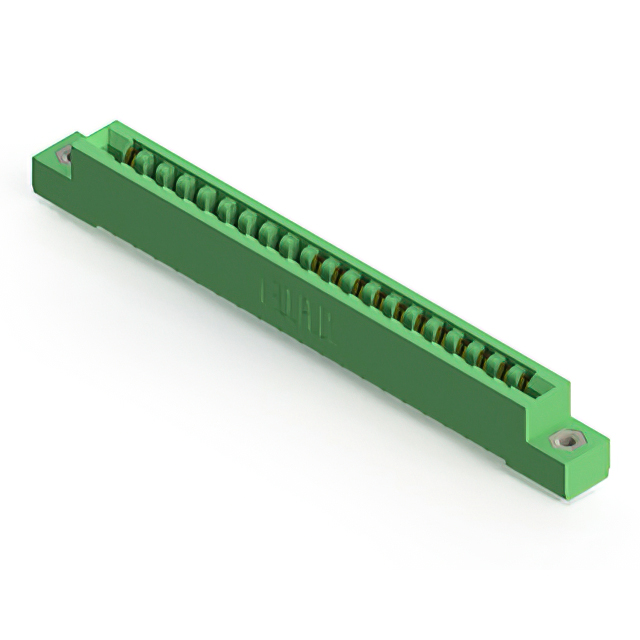

307-020-505-108 307-020-505-108 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar

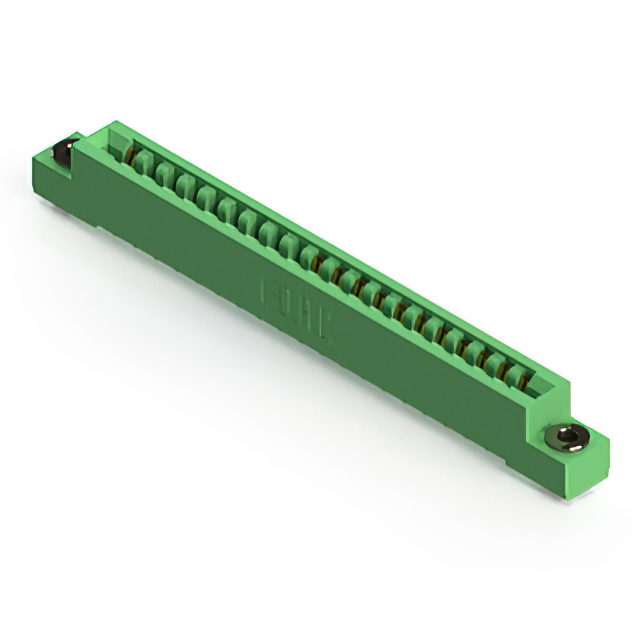

307-020-505-103 307-020-505-103 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-107 307-020-505-107 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-168 357-020-505-168 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-158 357-020-505-158 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-178 307-020-505-178 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-158 307-020-505-158 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-168 307-020-505-168 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-101 857-020-505-101 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-104 857-020-505-104 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-102 857-020-505-102 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-104 807-020-505-104 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-102 807-020-505-102 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-101 807-020-505-101 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-112 857-020-505-112 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-112 807-020-505-112 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-107 857-020-505-107 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-108 857-020-505-108 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-103 857-020-505-103 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-103 807-020-505-103 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: 807 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-108 807-020-505-108 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-107 807-020-505-107 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-178 EDAC Inc. 807-020-505-178%20-%20EDAC%20High%20Temp%20Card%20Edge%20Connector.PDF Description: 807 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Produkt ist nicht verfügbar
807-020-505-168 EDAC Inc. 807-020-505-168%20-%20EDAC%20High%20Temp%20Card%20Edge%20Connector.PDF Description: 807 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Produkt ist nicht verfügbar
746-056-560-206 746-056-560-206 EDAC Inc. EDAC%20746%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 56POS 0.125
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
746-056-560-201 746-056-560-201 EDAC Inc. EDAC%20746%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 56POS 0.125
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
725-056-560-201 725-056-560-201 EDAC Inc. 725-056-560-201%20-%20EDAC%20Ultra-Mate%20Card%20Edge%20Connector.PDF Description: CONN EDGE DUAL FMALE 56POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
737-056-560-206 737-056-560-206 EDAC Inc. EDAC%20737%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 56POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
717-056-560-201 717-056-560-201 EDAC Inc. EDAC%20717%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 56POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
745-056-560-206 745-056-560-206 EDAC Inc. EDAC%20745%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 56POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
745-056-560-201 745-056-560-201 EDAC Inc. EDAC%20745%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 56POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-521-504 355-026-521-504 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-500-502 355-026-500-502 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-500-501 355-026-500-501 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-520-504 355-026-520-504 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-521-502 355-026-521-502 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-520-201 355-026-520-201 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-521-501 355-026-521-501 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-520-204 355-026-520-204 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-521-202 355-026-521-202 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
387-018-558-678 EDAC%20337%20387%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 18POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
396-018-558-612 396-018-558-612%20-%20EDAC%20Card%20Edge%20Connector.PDF
396-018-558-612
Hersteller: EDAC Inc.
Description: 396 SERIES (.125" (3.18MM) CONTA
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder, Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
346-018-558-678 EDAC%20346%20396%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
346-018-558-678
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 18POS 0.125
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Solder, Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
395-018-558-608 395-018-558-608%20-%20EDAC%20Card%20Edge%20Connector.PDF
395-018-558-608
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 18POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
395-018-558-603 395-018-558-603%20-%20EDAC%20Card%20Edge%20Connector.PDF
395-018-558-603
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 18POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
395-018-558-607 395-018-558-607%20-%20EDAC%20Card%20Edge%20Connector.PDF
395-018-558-607
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 18POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
396-018-558-658 396-018-558-658%20-%20EDAC%20Card%20Edge%20Connector.PDF
396-018-558-658
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 18POS 0.125
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Solder, Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
345-018-558-603 EDAC%20345%20395%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
345-018-558-603
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 18POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole, Right Angle
Number of Positions: 18
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Number of Rows: 1
Produkt ist nicht verfügbar
746-014-525-506 EDAC%20746%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
746-014-525-506
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 14POS 0.125
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 14
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 14
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-104 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-020-505-104
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-104 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-020-505-104
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-102 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-020-505-102
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-101 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-020-505-101
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-102 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-020-505-102
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-101 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-020-505-101
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-112 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-020-505-112
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-112 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-020-505-112
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-108 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-020-505-108
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-103 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-020-505-103
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-107 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-020-505-107
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-108 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-020-505-108
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-103 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-020-505-103
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-107 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-020-505-107
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-168 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-020-505-168
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
357-020-505-158 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-020-505-158
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-178 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-020-505-178
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-158 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-020-505-158
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
307-020-505-168 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-020-505-168
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Features: Card Guides
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-101 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
857-020-505-101
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-104 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
857-020-505-104
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-102 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
857-020-505-102
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-104 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
807-020-505-104
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-102 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
807-020-505-102
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-101 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
807-020-505-101
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-112 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
857-020-505-112
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-112 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
807-020-505-112
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-107 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
857-020-505-107
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-108 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
857-020-505-108
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
857-020-505-103 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
857-020-505-103
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-103 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
807-020-505-103
Hersteller: EDAC Inc.
Description: 807 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-108 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
807-020-505-108
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-107 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
807-020-505-107
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 20POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 20
Number of Rows: 1
Produkt ist nicht verfügbar
807-020-505-178 807-020-505-178%20-%20EDAC%20High%20Temp%20Card%20Edge%20Connector.PDF
Hersteller: EDAC Inc.
Description: 807 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Produkt ist nicht verfügbar
807-020-505-168 807-020-505-168%20-%20EDAC%20High%20Temp%20Card%20Edge%20Connector.PDF
Hersteller: EDAC Inc.
Description: 807 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Produkt ist nicht verfügbar
746-056-560-206 EDAC%20746%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
746-056-560-206
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 56POS 0.125
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
746-056-560-201 EDAC%20746%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
746-056-560-201
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 56POS 0.125
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
725-056-560-201 725-056-560-201%20-%20EDAC%20Ultra-Mate%20Card%20Edge%20Connector.PDF
725-056-560-201
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 56POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
737-056-560-206 EDAC%20737%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
737-056-560-206
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 56POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
717-056-560-201 EDAC%20717%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
717-056-560-201
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 56POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
745-056-560-206 EDAC%20745%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
745-056-560-206
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 56POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
745-056-560-201 EDAC%20745%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
745-056-560-201
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 56POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 56
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever, Make Before Break
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 28
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-521-504 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-026-521-504
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-500-502 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-026-500-502
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-500-501 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-026-500-501
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-520-504 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-026-520-504
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-521-502 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-026-521-502
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-520-201 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-026-520-201
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-521-501 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-026-521-501
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-520-204 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-026-520-204
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
355-026-521-202 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-026-521-202
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 26
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Number of Rows: 2
Produkt ist nicht verfügbar
Wählen Sie Seite:   [  << Vorherige Seite ]  1 145 290 435 580 725 870 1015 1122 1123 1124 1125 1126 1127 1128 1129 1130 1131 1132 1160 1305 1450 1459  [ Nächste Seite >> ]
