Produkte > EDAC INC. > Alle Produkte des Herstellers EDAC INC. (85209) > Seite 1109 nach 1421

Wählen Sie Seite:   [  << Vorherige Seite ]  1 142 284 426 568 710 852 994 1104 1105 1106 1107 1108 1109 1110 1111 1112 1113 1114 1136 1278 1420 1421  [ Nächste Seite >> ]
Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
ohne MwSt
355-078-556-201 355-078-556-201 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-556-207 355-078-556-207 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-500-201 355-078-500-201 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-500-512 355-078-500-512 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-555-278 355-078-555-278 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Box
Features: Card Extender, Card Guides
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-521-512 355-078-521-512 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-520-508 355-078-520-508 EDAC Inc. EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
392-096-540-202 392-096-540-202 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
392-096-544-207 392-096-544-207 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar

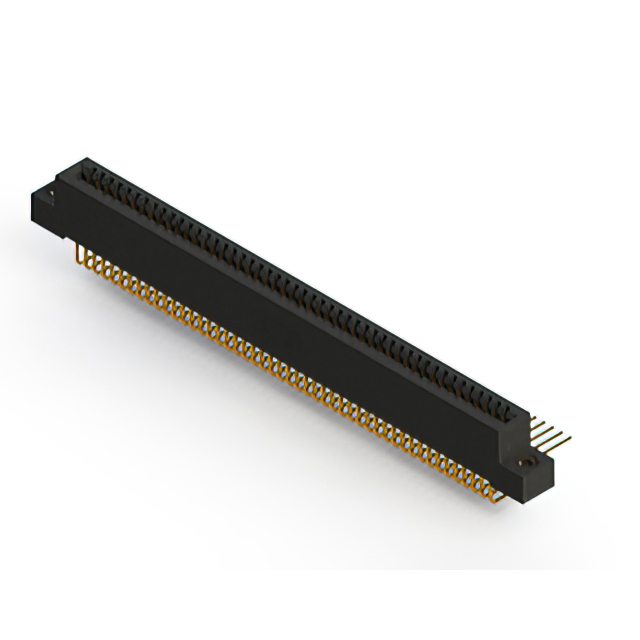

392-096-558-208 392-096-558-208 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder, Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-096-520-212 892-096-520-212 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-096-540-203 892-096-540-203 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-096-559-203 892-096-559-203 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
342-096-541-201 342-096-541-201 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar

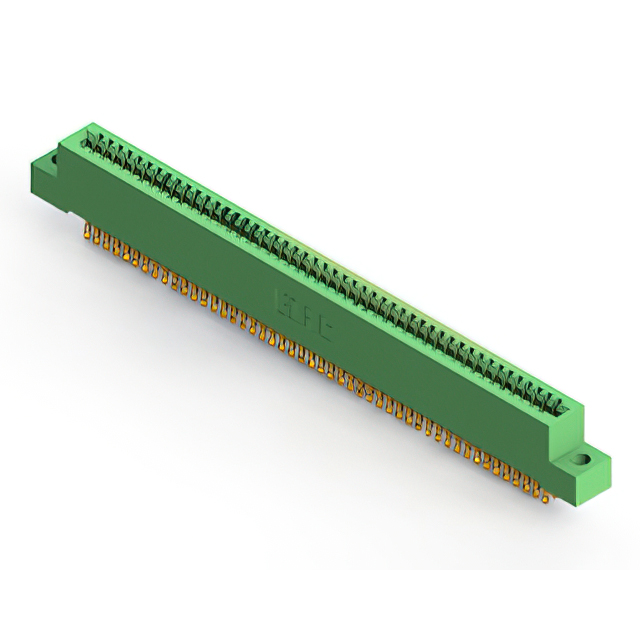

342-096-555-204 342-096-555-204 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
342-096-560-204 342-096-560-204 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar

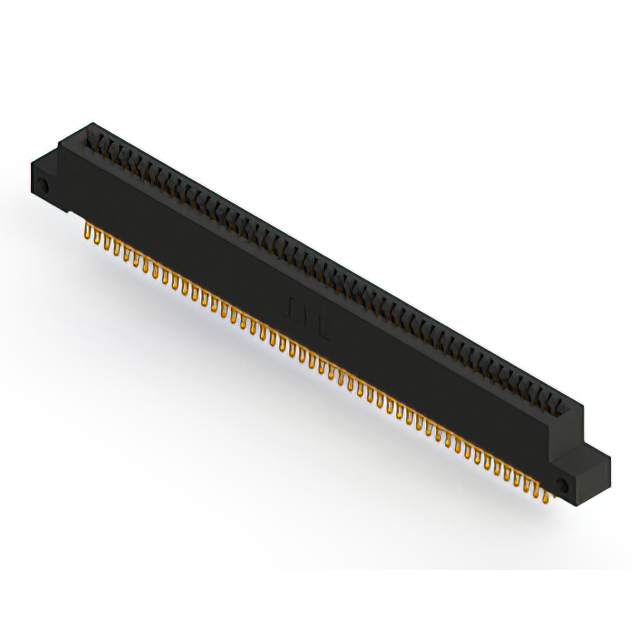

392-096-555-212 392-096-555-212 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-096-540-204 892-096-540-204 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-524-204 833-076-524-204 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-520-804 833-076-520-804 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-544-204 833-076-544-204 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-544-202 833-076-544-202 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-540-808 833-076-540-808 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-558-212 833-076-558-212 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole, Right Angle
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-555-802 333-076-555-802 EDAC Inc. EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-520-803 333-076-520-803 EDAC Inc. EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-541-203 333-076-541-203 EDAC Inc. EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-540-203 333-076-540-203 EDAC Inc. EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-556-808 833-076-556-808 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-540-804 333-076-540-804 EDAC Inc. EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-558-807 333-076-558-807 EDAC Inc. EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole, Right Angle
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-541-202 833-076-541-202 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: 833 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-542-808 833-076-542-808 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: 833 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-542-208 833-076-542-208 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
663-025-364-033 663-025-364-033 EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Mating Side, Female Screwlock (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-025-364-036 663-025-364-036 EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Mating Side, Female Screwlock (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-025-364-043 663-025-364-043 EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Mating Side, Female Screwlock (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-037-364-05A 663-037-364-05A EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN D-SUB PLUG/RCPT 37P R/A SLD
Features: Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 37, 37
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (M3)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 4 (DC, C); 4 (DC, C)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-037-364-049 663-037-364-049 EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 37, 37
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Mating Side, Female Screwlock (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 4 (DC, C); 4 (DC, C)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-037-664-032 663-037-664-032 EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 37, 37
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 30.0µin (0.76µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 4 (DC, C); 4 (DC, C)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-037-664-05A 663-037-664-05A EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN D-SUB PLUG/RCPT 37P R/A SLD
Features: Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 37, 37
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (M3)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 30.0µin (0.76µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 4 (DC, C); 4 (DC, C)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-015-264-007 663-015-264-007 EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Grounding Indents, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 15, 15
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (Unthreaded)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: FLASH
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 2 (DA, A); 2 (DA, A)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-025-264-034 663-025-264-034 EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (Unthreaded)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: FLASH
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-025-264-00A 663-025-264-00A EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN D-SUB PLUG/RCPT 25P R/A SLD
Features: Grounding Indents, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (M3)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: FLASH
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-025-264-050 663-025-264-050 EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (Unthreaded)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: FLASH
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-015-364-034 663-015-364-034 EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 15, 15
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (Unthreaded)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 2 (DA, A); 2 (DA, A)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-015-364-057 663-015-364-057 EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 15, 15
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (Unthreaded)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 2 (DA, A); 2 (DA, A)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-015-364-009 663-015-364-009 EDAC Inc. EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Grounding Indents, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 15, 15
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Mating Side, Female Screwlock (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 2 (DA, A); 2 (DA, A)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
357-010-527-107 357-010-527-107 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
357-010-527-102 357-010-527-102 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
307-010-527-107 307-010-527-107 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
357-010-527-178 357-010-527-178 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 10POS 0.156
Features: Card Guides
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
746-010-527-106 746-010-527-106 EDAC Inc. EDAC%20746%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 10POS 0.125
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
807-010-527-102 807-010-527-102 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: 807 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
807-010-527-104 807-010-527-104 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
357-010-527-104 357-010-527-104 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
357-010-527-101 357-010-527-101 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
307-010-527-178 307-010-527-178 EDAC Inc. EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 10POS 0.156
Features: Card Guides
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
857-010-527-101 857-010-527-101 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
857-010-527-103 857-010-527-103 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
355-078-556-201 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-078-556-201
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-556-207 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-078-556-207
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-500-201 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-078-500-201
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-500-512 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-078-500-512
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-555-278 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-078-555-278
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Box
Features: Card Extender, Card Guides
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-521-512 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-078-521-512
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
355-078-520-508 EDAC%20305%20315%20355%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
355-078-520-508
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 78POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Panel Mount, Through Hole
Number of Positions: 78
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 39
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
392-096-540-202 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
392-096-540-202
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
392-096-544-207 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
392-096-544-207
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
392-096-558-208 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
392-096-558-208
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder, Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-096-520-212 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-096-520-212
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-096-540-203 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-096-540-203
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-096-559-203 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-096-559-203
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
342-096-541-201 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
342-096-541-201
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
342-096-555-204 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
342-096-555-204
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
342-096-560-204 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
342-096-560-204
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
392-096-555-212 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
392-096-555-212
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-096-540-204 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-096-540-204
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 96POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 96
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 48
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-524-204 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-076-524-204
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-520-804 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-076-520-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-544-204 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-076-544-204
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-544-202 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-076-544-202
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-540-808 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-076-540-808
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-558-212 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-076-558-212
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole, Right Angle
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-555-802 EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
333-076-555-802
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-520-803 EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
333-076-520-803
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-541-203 EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
333-076-541-203
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-540-203 EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
333-076-540-203
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-556-808 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-076-556-808
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Features: Card Extender
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-540-804 EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
333-076-540-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
333-076-558-807 EDAC%20333%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
333-076-558-807
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole, Right Angle
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-541-202 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-076-541-202
Hersteller: EDAC Inc.
Description: 833 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-542-808 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-076-542-808
Hersteller: EDAC Inc.
Description: 833 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Threaded Insert, 4-40
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-076-542-208 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-076-542-208
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 76POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 76
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 38
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
663-025-364-033 EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-025-364-033
Hersteller: EDAC Inc.
Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Mating Side, Female Screwlock (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-025-364-036 EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-025-364-036
Hersteller: EDAC Inc.
Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Mating Side, Female Screwlock (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-025-364-043 EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-025-364-043
Hersteller: EDAC Inc.
Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Mating Side, Female Screwlock (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-037-364-05A EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-037-364-05A
Hersteller: EDAC Inc.
Description: CONN D-SUB PLUG/RCPT 37P R/A SLD
Features: Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 37, 37
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (M3)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 4 (DC, C); 4 (DC, C)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-037-364-049 EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-037-364-049
Hersteller: EDAC Inc.
Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 37, 37
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Mating Side, Female Screwlock (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 4 (DC, C); 4 (DC, C)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-037-664-032 EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-037-664-032
Hersteller: EDAC Inc.
Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 37, 37
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 30.0µin (0.76µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 4 (DC, C); 4 (DC, C)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-037-664-05A EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-037-664-05A
Hersteller: EDAC Inc.
Description: CONN D-SUB PLUG/RCPT 37P R/A SLD
Features: Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 37, 37
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (M3)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 30.0µin (0.76µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 4 (DC, C); 4 (DC, C)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-015-264-007 EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-015-264-007
Hersteller: EDAC Inc.
Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Grounding Indents, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 15, 15
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (Unthreaded)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: FLASH
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 2 (DA, A); 2 (DA, A)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-025-264-034 EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-025-264-034
Hersteller: EDAC Inc.
Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (Unthreaded)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: FLASH
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-025-264-00A EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-025-264-00A
Hersteller: EDAC Inc.
Description: CONN D-SUB PLUG/RCPT 25P R/A SLD
Features: Grounding Indents, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (M3)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: FLASH
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-025-264-050 EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-025-264-050
Hersteller: EDAC Inc.
Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 25, 25
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (Unthreaded)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: FLASH
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 3 (DB, B); 3 (DB, B)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-015-364-034 EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-015-364-034
Hersteller: EDAC Inc.
Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Board Lock, Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 15, 15
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (Unthreaded)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 2 (DA, A); 2 (DA, A)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-015-364-057 EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-015-364-057
Hersteller: EDAC Inc.
Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Grounding Indents, Mounting Brackets, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 15, 15
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Housing/Shell (Unthreaded)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 2 (DA, A); 2 (DA, A)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
663-015-364-009 EDAC%20661%20662%20663%20664%20Series%20D-sub%20Connectors%20English%20Ordering%20Guide.pdf
663-015-364-009
Hersteller: EDAC Inc.
Description: 663 SERIES RIGHT ANGLE DUAL D-SU
Features: Grounding Indents, Shielded
Packaging: Tray
Connector Type: Plug, Male Pins; Receptacle, Female Sockets
Contact Finish: Gold
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 15, 15
Number of Rows: 2, 2
Contact Type: Signal
Flange Feature: Mating Side, Female Screwlock (4-40)
Termination: Solder
Connector Style: D-Sub - Stacked
Contact Finish Thickness: 15.0µin (0.38µm)
Material Flammability Rating: UL94 V-0
Shell Material, Finish: Steel, Nickel Plated
Shell Size, Connector Layout: 2 (DA, A); 2 (DA, A)
Part Status: Active
Backset Spacing: 0.318" (8.08mm)
Produkt ist nicht verfügbar
357-010-527-107 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-010-527-107
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
357-010-527-102 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-010-527-102
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
307-010-527-107 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-010-527-107
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
357-010-527-178 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-010-527-178
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 10POS 0.156
Features: Card Guides
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
746-010-527-106 EDAC%20746%20Series%20Pressfit%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
746-010-527-106
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 10POS 0.125
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Press-Fit
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
807-010-527-102 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
807-010-527-102
Hersteller: EDAC Inc.
Description: 807 HIGH TEMP' SERIES (.156" (3.
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
807-010-527-104 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
807-010-527-104
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
357-010-527-104 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-010-527-104
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
357-010-527-101 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
357-010-527-101
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
307-010-527-178 EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
307-010-527-178
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 10POS 0.156
Features: Card Guides
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
857-010-527-101 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
857-010-527-101
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
857-010-527-103 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
857-010-527-103
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 10POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 10
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
Wählen Sie Seite:   [  << Vorherige Seite ]  1 142 284 426 568 710 852 994 1104 1105 1106 1107 1108 1109 1110 1111 1112 1113 1114 1136 1278 1420 1421  [ Nächste Seite >> ]
