Produkte > EDAC INC. > Alle Produkte des Herstellers EDAC INC. (86318) > Seite 1063 nach 1439

Wählen Sie Seite:   [  << Vorherige Seite ]  1 143 286 429 572 715 858 1001 1058 1059 1060 1061 1062 1063 1064 1065 1066 1067 1068 1144 1287 1430 1439  [ Nächste Seite >> ]
Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
ohne MwSt

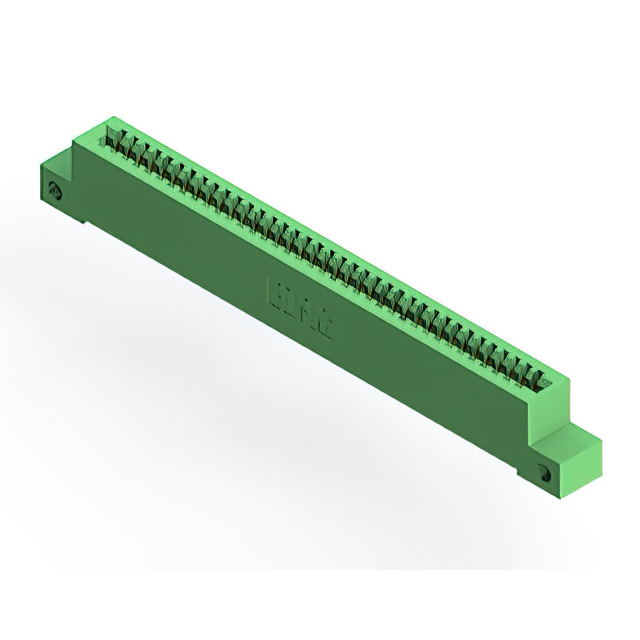

342-036-523-101 342-036-523-101 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
392-036-520-112 392-036-520-112 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
842-036-523-207 842-036-523-207 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
842-036-523-112 842-036-523-112 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
892-036-521-107 892-036-521-107 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
392-036-521-102 392-036-521-102 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
842-036-520-201 842-036-520-201 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 18POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
842-036-521-202 842-036-521-202 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar

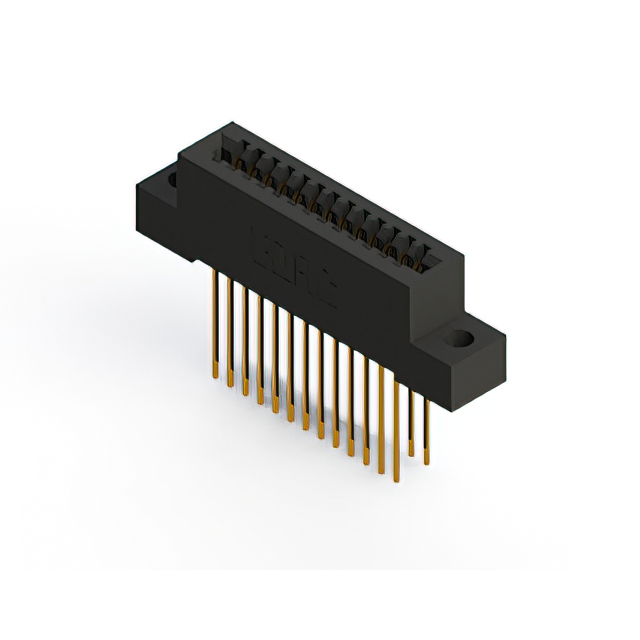

892-036-523-204 892-036-523-204 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
842-036-520-202 842-036-520-202 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
842-036-524-208 842-036-524-208 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-036-524-207 892-036-524-207 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-036-520-104 892-036-520-104 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
392-036-524-204 392-036-524-204 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
342-036-523-102 342-036-523-102 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
493-110-341-621 493-110-341-621 EDAC Inc. Description: 493 SERIES DIN CONNECTOR WITH ST
Packaging: Bulk
Part Status: Active
Produkt ist nicht verfügbar
493-110-341-622 493-110-341-622 EDAC Inc. Description: 493 SERIES DIN CONNECTOR WITH ST
Packaging: Bulk
Part Status: Active
Produkt ist nicht verfügbar
345-034-556-804 345-034-556-804 EDAC Inc. EDAC%20345%20395%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 34POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 34
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 17
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
395-036-556-804 395-036-556-804 EDAC Inc. 395-036-556-804%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: CONN EDGE DUAL FMALE 36POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
395-052-556-804 395-052-556-804 EDAC Inc. 395-052-556-804%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: CONN EDGE DUAL FMALE 52POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 52
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 26
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
337-032-556-804 337-032-556-804 EDAC Inc. EDAC%20337%20387%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 32POS 0.156
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 32
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 16
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
387-030-556-804 387-030-556-804 EDAC Inc. EDAC%20337%20387%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 30POS 0.156
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 30
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 15
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
395-124-556-804 395-124-556-804 EDAC Inc. 395-124-556-804%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: CONN EDGE DUAL FML 124POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 124
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 62
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
345-136-556-804 345-136-556-804 EDAC Inc. EDAC%20345%20395%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FML 136POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 136
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 68
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-020-556-804 833-020-556-804 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 20POS 0.156
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
896-016-556-804 896-016-556-804 EDAC Inc. EDAC%20846%20896%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 16POS 0.125
Features: Card Extender
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 16
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 8
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
837-016-556-804 837-016-556-804 EDAC Inc. EDAC%20837%20887%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 16POS 0.156
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 16
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 8
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
846-052-556-804 846-052-556-804 EDAC Inc. EDAC%20846%20896%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 52POS 0.125
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 52
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 26
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
895-048-556-804 895-048-556-804 EDAC Inc. EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 48POS 0.100
Features: Card Extender
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 48
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 24
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
887-046-556-804 887-046-556-804 EDAC Inc. EDAC%20837%20887%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 46POS 0.156
Features: Card Extender
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 46
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 23
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
895-068-556-804 895-068-556-804 EDAC Inc. EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 68POS 0.100
Features: Card Extender
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 68
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 34
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
845-074-556-804 845-074-556-804 EDAC Inc. EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 74POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 74
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
842-037-524-104 842-037-524-104 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
342-037-540-107 342-037-540-107 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
842-037-558-102 842-037-558-102 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole, Right Angle
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
842-037-500-107 842-037-500-107 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
342-037-542-102 342-037-542-102 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
342-037-520-112 342-037-520-112 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
342-037-544-107 342-037-544-107 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
845-032-541-112 845-032-541-112 EDAC Inc. EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 32POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 32
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 32
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
845-022-541-112 845-022-541-112 EDAC Inc. EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 22POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 22
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 22
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
395-022-541-112 395-022-541-112 EDAC Inc. 395-022-541-112%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: CONN EDGE SINGLE FML 22POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 22
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 22
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
895-012-541-112 895-012-541-112 EDAC Inc. EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 12POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 12
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 12
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
395-072-541-112 EDAC Inc. 395-072-541-112%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: CONN EDGE SINGLE FML 72POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 72
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 72
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
837-012-541-112 837-012-541-112 EDAC Inc. EDAC%20837%20887%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 12POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 12
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 12
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
396-032-541-112 396-032-541-112 EDAC Inc. 396-032-541-112%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: CONN EDGE SGL FMALE 32POS 0.125
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 32
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 32
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
395-052-541-112 395-052-541-112 EDAC Inc. 395-052-541-112%20-%20EDAC%20Card%20Edge%20Connector.PDF Description: CONN EDGE SINGLE FML 52POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 52
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 52
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
845-062-541-112 845-062-541-112 EDAC Inc. EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 62POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 62
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 62
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
392-042-541-112 392-042-541-112 EDAC Inc. EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 42POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 42
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 42
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
833-032-541-112 833-032-541-112 EDAC Inc. EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SGL FMALE 32POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 32
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 32
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
895-062-541-112 895-062-541-112 EDAC Inc. EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE SINGLE FML 62POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 62
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 62
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
857-032-541-112 857-032-541-112 EDAC Inc. EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 64POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 64
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 32
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-020-542-202 892-020-542-202 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 20POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-024-542-202 892-024-542-202 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 24POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 24
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 12
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-026-541-202 892-026-541-202 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 26
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-026-541-204 892-026-541-204 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 26
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-020-524-212 892-020-524-212 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 20POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-026-542-212 892-026-542-212 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 26POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 26
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-020-540-203 892-020-540-203 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 20POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-022-558-202 892-022-558-202 EDAC Inc. EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf Description: CONN EDGE DUAL FMALE 22POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 22
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 11
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
342-036-523-101 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
342-036-523-101
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
392-036-520-112 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
392-036-520-112
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
842-036-523-207 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
842-036-523-207
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
842-036-523-112 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
842-036-523-112
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
892-036-521-107 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-036-521-107
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
392-036-521-102 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
392-036-521-102
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
842-036-520-201 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
842-036-520-201
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 18POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
842-036-521-202 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
842-036-521-202
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-036-523-204 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-036-523-204
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
842-036-520-202 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
842-036-520-202
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
842-036-524-208 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
842-036-524-208
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-036-524-207 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-036-524-207
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-036-520-104 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-036-520-104
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
392-036-524-204 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
392-036-524-204
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
342-036-523-102 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
342-036-523-102
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 36POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 36
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
493-110-341-621
493-110-341-621
Hersteller: EDAC Inc.
Description: 493 SERIES DIN CONNECTOR WITH ST
Packaging: Bulk
Part Status: Active
Produkt ist nicht verfügbar
493-110-341-622
493-110-341-622
Hersteller: EDAC Inc.
Description: 493 SERIES DIN CONNECTOR WITH ST
Packaging: Bulk
Part Status: Active
Produkt ist nicht verfügbar
345-034-556-804 EDAC%20345%20395%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
345-034-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 34POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 34
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 17
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
395-036-556-804 395-036-556-804%20-%20EDAC%20Card%20Edge%20Connector.PDF
395-036-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 36POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 36
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 18
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
395-052-556-804 395-052-556-804%20-%20EDAC%20Card%20Edge%20Connector.PDF
395-052-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 52POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 52
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 26
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
337-032-556-804 EDAC%20337%20387%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
337-032-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 32POS 0.156
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 32
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 16
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
387-030-556-804 EDAC%20337%20387%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
387-030-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 30POS 0.156
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 30
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 15
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
395-124-556-804 395-124-556-804%20-%20EDAC%20Card%20Edge%20Connector.PDF
395-124-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FML 124POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 124
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 62
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
345-136-556-804 EDAC%20345%20395%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
345-136-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FML 136POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 136
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 68
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
833-020-556-804 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-020-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 20POS 0.156
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 20
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
896-016-556-804 EDAC%20846%20896%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
896-016-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 16POS 0.125
Features: Card Extender
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 16
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 8
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
837-016-556-804 EDAC%20837%20887%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
837-016-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 16POS 0.156
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 16
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 8
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
846-052-556-804 EDAC%20846%20896%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
846-052-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 52POS 0.125
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 52
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 26
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
895-048-556-804 EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
895-048-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 48POS 0.100
Features: Card Extender
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 48
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 24
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
887-046-556-804 EDAC%20837%20887%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
887-046-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 46POS 0.156
Features: Card Extender
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 46
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 23
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
895-068-556-804 EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
895-068-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 68POS 0.100
Features: Card Extender
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 68
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 34
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
845-074-556-804 EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
845-074-556-804
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 74POS 0.100
Features: Card Extender
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Board Edge, Straddle Mount
Number of Positions: 74
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
842-037-524-104 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
842-037-524-104
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
342-037-540-107 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
342-037-540-107
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
842-037-558-102 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
842-037-558-102
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole, Right Angle
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
842-037-500-107 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
842-037-500-107
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
342-037-542-102 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
342-037-542-102
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
342-037-520-112 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
342-037-520-112
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
342-037-544-107 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
342-037-544-107
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 37POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 37
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 37
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
845-032-541-112 EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
845-032-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 32POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 32
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 32
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
845-022-541-112 EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
845-022-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 22POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 22
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 22
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
395-022-541-112 395-022-541-112%20-%20EDAC%20Card%20Edge%20Connector.PDF
395-022-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 22POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 22
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 22
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
895-012-541-112 EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
895-012-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 12POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 12
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 12
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
395-072-541-112 395-072-541-112%20-%20EDAC%20Card%20Edge%20Connector.PDF
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 72POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 72
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 72
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
837-012-541-112 EDAC%20837%20887%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
837-012-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 12POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 12
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 12
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
396-032-541-112 396-032-541-112%20-%20EDAC%20Card%20Edge%20Connector.PDF
396-032-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 32POS 0.125
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 32
Pitch: 0.125" (3.18mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 32
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
395-052-541-112 395-052-541-112%20-%20EDAC%20Card%20Edge%20Connector.PDF
395-052-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 52POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 52
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 52
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
845-062-541-112 EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
845-062-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 62POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 62
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 62
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
392-042-541-112 EDAC%20342%20392%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
392-042-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 42POS 0.100
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 42
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 42
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
833-032-541-112 EDAC%20833%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
833-032-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 32POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 32
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 32
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
895-062-541-112 EDAC%20845%20895%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
895-062-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE SINGLE FML 62POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 62
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Single
Contact Type: Cantilever
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 62
Part Status: Active
Number of Rows: 1
Produkt ist nicht verfügbar
857-032-541-112 EDAC%20807%20857%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
857-032-541-112
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 64POS 0.156
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 64
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Semi Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 32
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-020-542-202 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-020-542-202
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 20POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-024-542-202 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-024-542-202
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 24POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 24
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 12
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-026-541-202 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-026-541-202
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 26
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-026-541-204 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-026-541-204
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 26
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-020-524-212 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-020-524-212
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 20POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-026-542-212 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-026-542-212
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 26POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 26
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 13
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-020-540-203 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-020-540-203
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 20POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole
Number of Positions: 20
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Termination: Wire Wrap
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 10
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
892-022-558-202 EDAC%20842%20892%20Series%20High%20Temp%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
892-022-558-202
Hersteller: EDAC Inc.
Description: CONN EDGE DUAL FMALE 22POS 0.100
Packaging: Bulk
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Through Hole, Right Angle
Number of Positions: 22
Pitch: 0.100" (2.54mm)
Operating Temperature: -40°C ~ 125°C
Read Out: Dual
Contact Type: Cantilever
Card Type: Non Specified - Dual Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 11
Part Status: Active
Number of Rows: 2
Produkt ist nicht verfügbar
Wählen Sie Seite:   [  << Vorherige Seite ]  1 143 286 429 572 715 858 1001 1058 1059 1060 1061 1062 1063 1064 1065 1066 1067 1068 1144 1287 1430 1439  [ Nächste Seite >> ]
